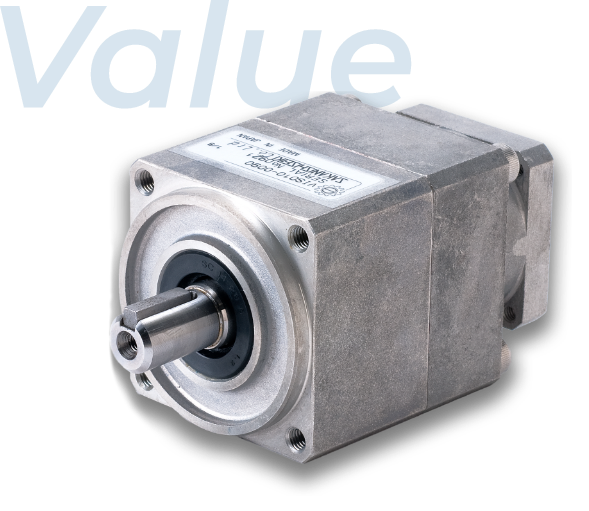

Ensuring stable quality and low prices by machining all major parts within the company To meet the need for power-saving gear reducers for servo motors at a reasonable price, we developed these gear reducers using our more than a half century of proven experience and knowledge in gear reducer design and manufacturing.
1. Any maker
Our design supports coupling with servo motors by any maker.
Please feel free to choose what is suitable for you.
2. Any mounting position
Any mounting position is possible due to the enclosed design.
3. Any application
Designers have freedom of choice due to the maintenance-free structure.
| Model：VIS YYY-ZZZZ | ||||||||
|---|---|---|---|---|---|---|---|---|
| Specification：VIS | ||||||||
| Company specifications of planetary gear reducers for servo motors | ||||||||
| Motor capacity：YYY | ||||||||
| 010 | 020 | 040 | 075 | 100 | 150 | 200 | 250 | 300 |
| 100W | 200W | 400W | 750W | 1.0KW | 1.5KW | 2.0KW | 2.5KW | 3.0KW |
| Reduction ratio：ZZZZ | ||||||||
| 0030 | 0050 | 0090 | 0150 | 0200 | 0250 | |||
| 1/3 | 1/5 | 1/9 | 1/15 | 1/20 | 1/25 | |||
Example：VIS010-030 denotes planetary gear reducer for a 100-W motor, with reduction ratio of 1/3.
If you have any questions about our products, discussions,
or problems that we can help you solve, please feel free to contact us at Sakanishi Seiki.
